Baso's Plasma Freezing System with Intelligent Temperature Control is the world's first plasma freezing instrument that conforms with international standards and all applicable Chinese laws. It includes a data management system for plasma freezing that can track the plasma bag's core temperature and simultaneously monitor freezing time during the whole process.
International Standards (WHO, FDA, CE)
Shorter plasma freezing time will provide a higher level of biological activity of unstable blood coagulation factors V and VIII. (European standards require that plasma be frozen to -30℃ within 60 minutes.) Using higher quality frozen plasma will yield better clinical outcomes.
◆ Simple Operation
Colorful touch-screen interface makes the Plasma Freezing System more convenient to use.
Separated functional buttons for easy operation.
Equipped with VGA, USB, internet ports and more.
Equipped with Windows operating system for wide compatibility and easy operation.

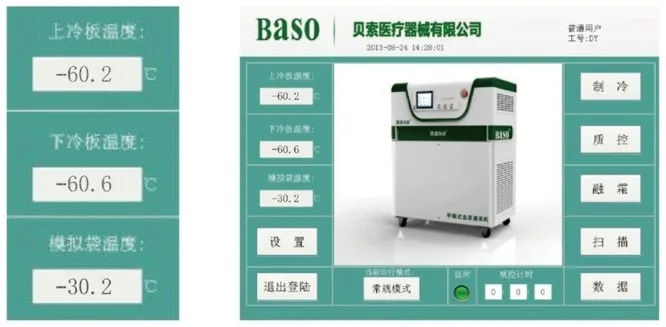

Design drawing of controller interface and photos of actual machine.

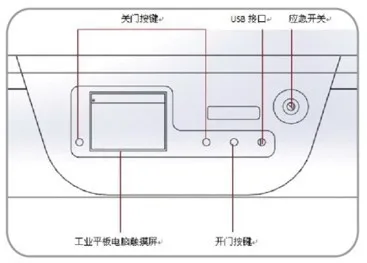

Introduction of buttons on Baso's Plasma Freezing System.

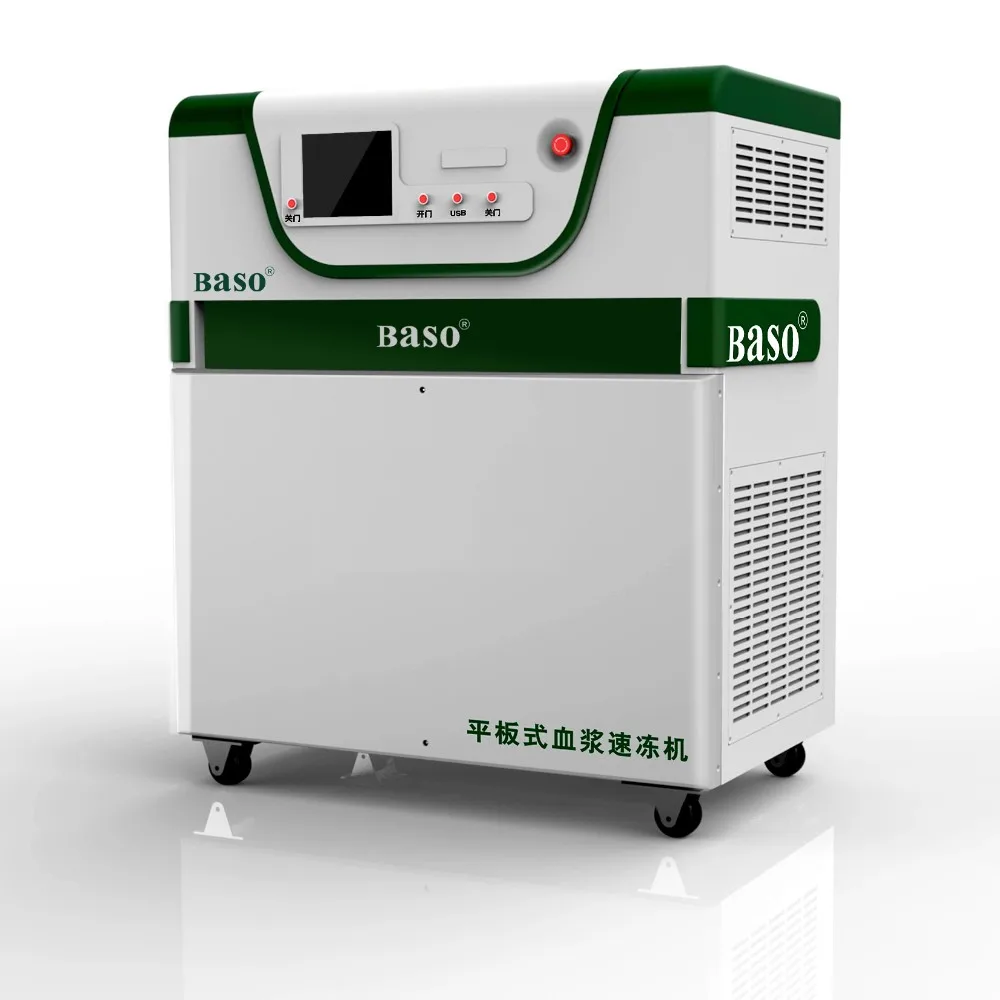

Display of Baso's Plasma Freezing System.
Partial views of Baso's Plasma Freezing System.
◆Low Temperature Output
Upper and lower cold plates can reach a temperature of -60℃.
When processing a full load, it takes about 30 minutes to cool the core temperature of plasma bags to -30℃.
◆Data Traceability and Quality Management
Simulated Plasma QC Bag ( Patented technology )
Baso's Plasma Freezing System includes a simulated plasma QC bag, a patented technology that tracks plasma freezing performance and provides quality control.
Because the simulated plasma QC bag (pic.1) has a specific heat capacity similar to that of a real plasma bag, the time required for freezing the simulated plasma QC bag serves as a reference point for estimating the freezing time of a similar real plasma bag, provided that the same environmental conditions apply. Hence, by inserting a thermostat probe into the core of the simulated plasma QC bag to track the freezing process and freezing time of the simulated plasma QC bag, one can accurately estimate the freezing time of a comparable real plasma bag. (pic.2)
The real core temperature of plasma bag, together with the variation curve and other data associated with the freezing process can be obtained by collecting real-time temperature and freezing time (pic.3) required from when the entire freezing process is carried out under the same environment and conditions. (pic.4)
Freezing time & temperature curve of simulated plasma QC bag.
Freezing time & temperature curve of real plasma.

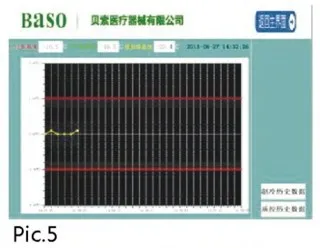

Quality Management of machine (Pic5)
* By monitoring the temperature difference between the upper and lower cold plates, temperature probes provide real-time monitoring that ensures meeting quality control requirements.
* Archived quality control data can be searched by specific date. * Monitoring temperature difference (△T): uncertainty of ±1℃.
Quality management of freezing process (Pic6)
The core temperature of plasma can be collected, stored, transported and summarized through analog plasma QC bags.

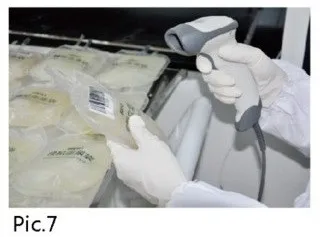

Quality control and data traceability (Pic 7)

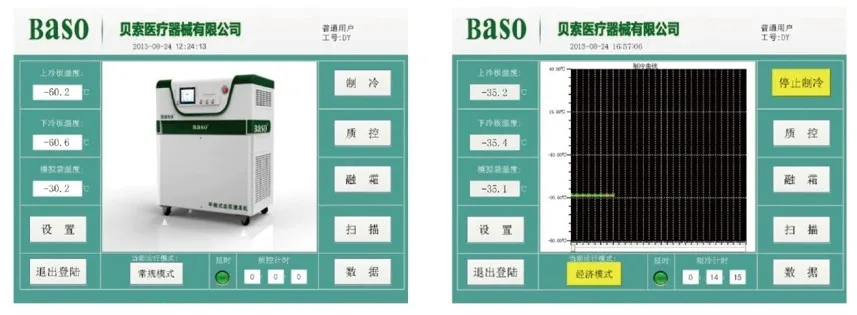

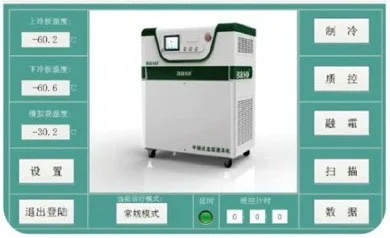

The touch-screen display allows real-time monitoring of the core temperature of analog plasma bags and the temperature of the upper and lower cold plates. Temperature variations throughout the processed are saved for subsequent searching and review.
* Freezing core temperature / time data can be searched. * Code number of instrument can be searched.
* Data of plasma bags can be searched by bar code. * All freezing data can be searched by specific date. * Operator can be searched by code number.

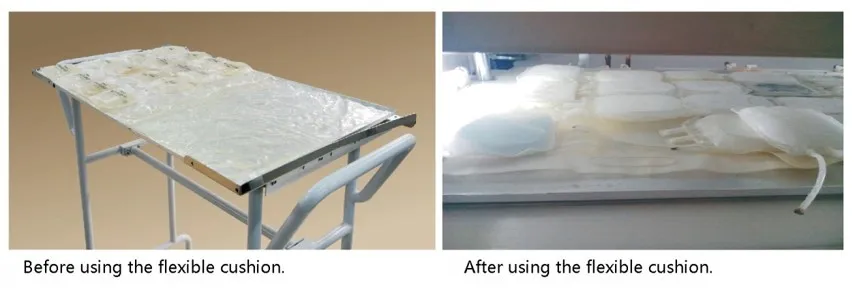

◆Soft-Touch Technology (Patented technology)
Using patented flexible cushion, the different quantity of plasma that causes uneven distribution and even leads to different freezing results can be overcome. Experimental data shows that flexible cushion can enhance the freezing effect by over 20%.
◆Intelligent Operation System
Control monitor system
Touch-screen interface and USB, VGA ports and windows system are well equipped for simple operation.
✔ Equipped 32G electronic drive for data storage.
✔Equipped Windows system for wide compatibility and easy operation.
✔ Outer scanner, remote monitor system can be directly connected.
✔ Data can be sent and received wirelessly.
After the freezing process, the machine will switch to eco mode to maintain the temperature of frozen plasma. When the temperature of the frozen compartment reaches -30 ℃, the machine will automatically maintain the temperature at below -30 ℃.

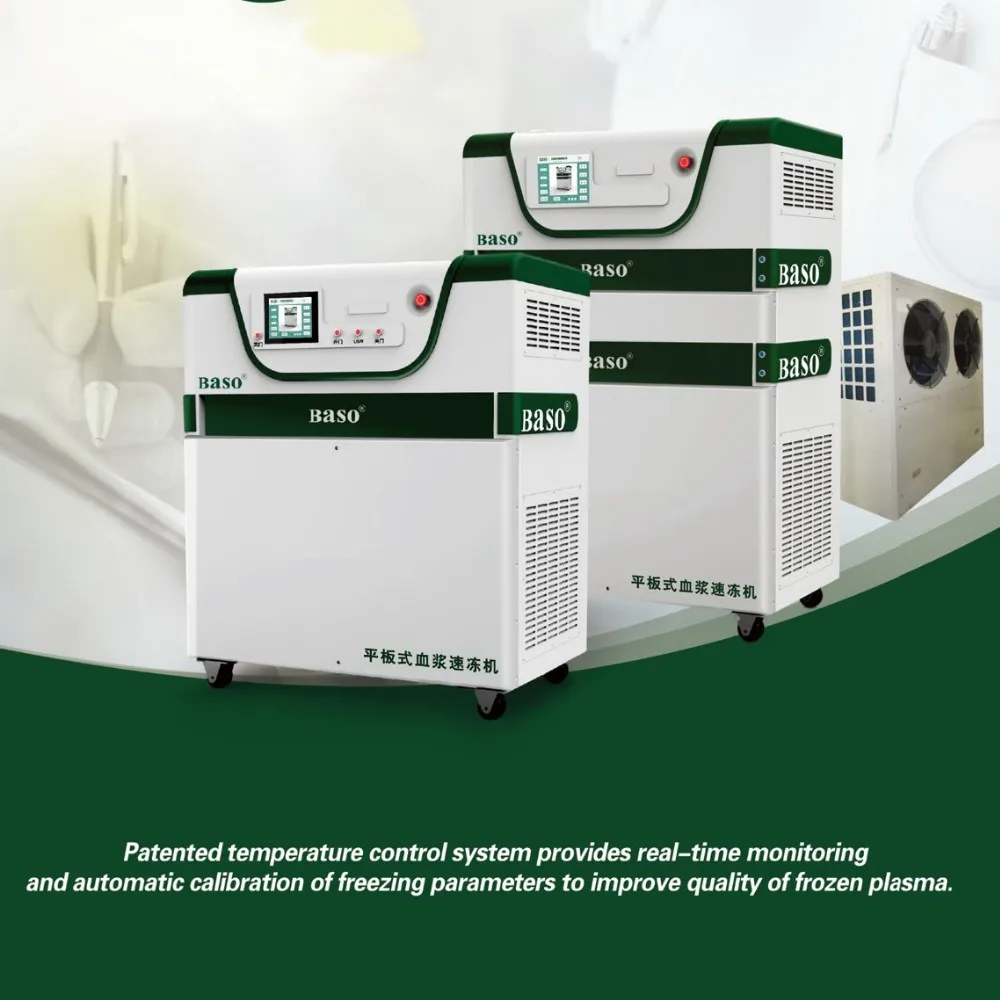

Pallet-type plasma freezing system(all-in-one type) ✔Set up easily. ✔Rapid movement.

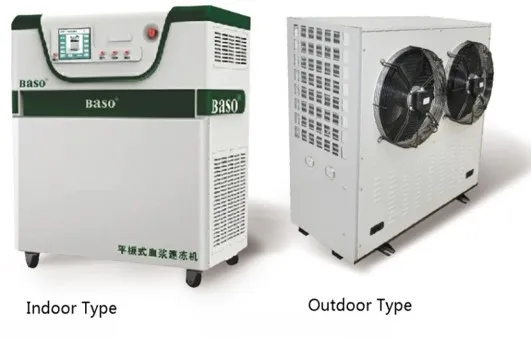

Pallet-type plasma freezing system( split type) ✔ Equipped with an external cold air circulating system. ✔ Noise-free. ✔ No warm air in indoor.

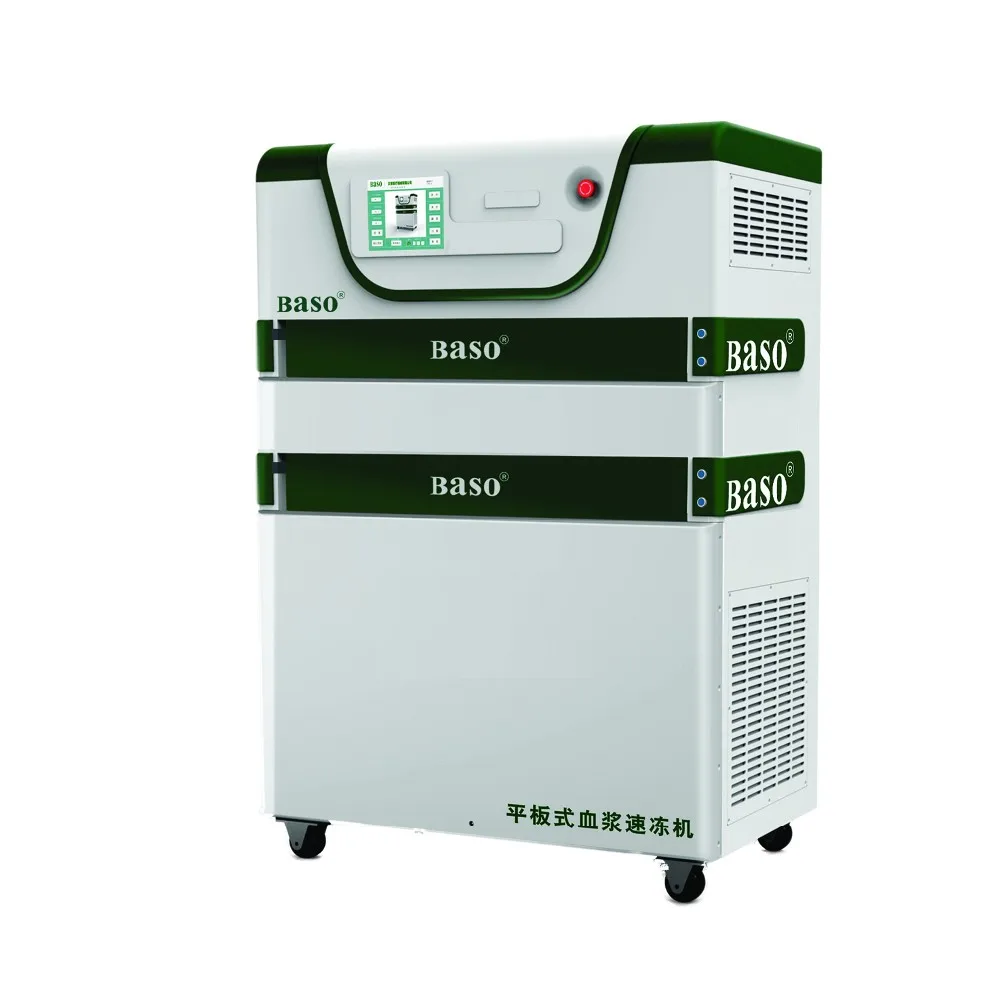

Pellet-type plasma freezing system( double casing type) ✔ Doubled quantity of plasma bags can be frozen at one time. ✔ Work efficiency can be enhanced.

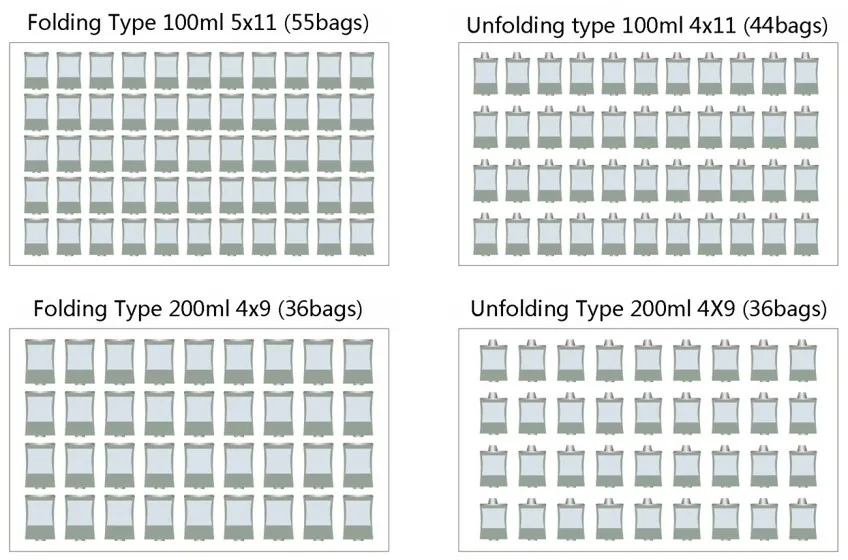

Position of Plasma Bags (illustrations)

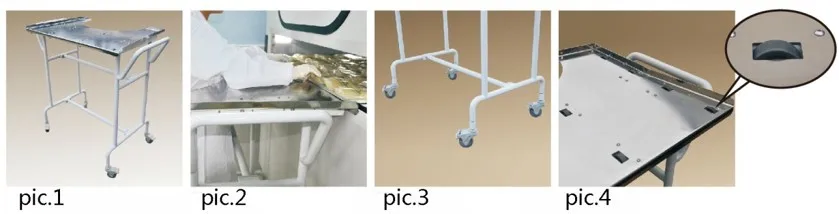

Cart for moving Baso's Intelligent Freezing System
Designed for easy transportation of plasma bags into cold storage.(pic.1)
The cart is ergonomically designed and has an adjustable height. (pic.2)
Cart is made of carbon alloy and wheels are made by quiet carbon fiber materials that can be moved conveniently. (pic.3)
Equipped with 12 wheels for easy movement of freezing plates.(pic.4)
Capacity: Up to 50 kg
Baso's Plasma Freezing System is protected by more than ten invention and utility model patents in China.

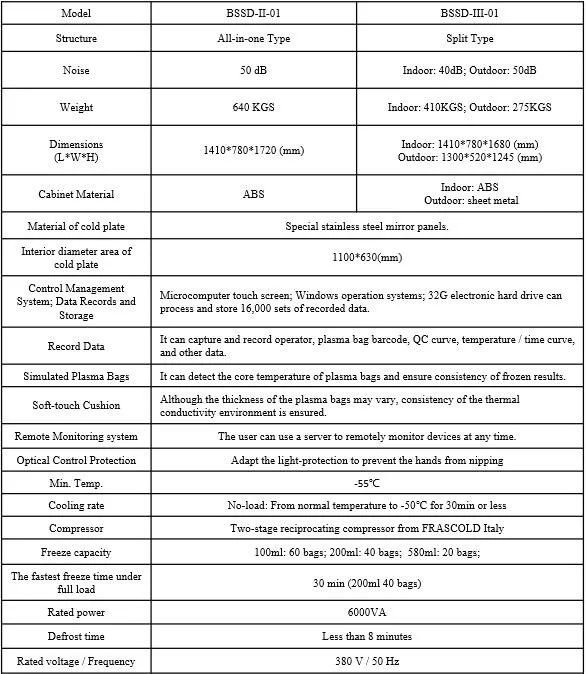

Freezing Technical Parameters
* Inquiry and consulting support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
123 (L) * 456 (W) * 789 (D)
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
